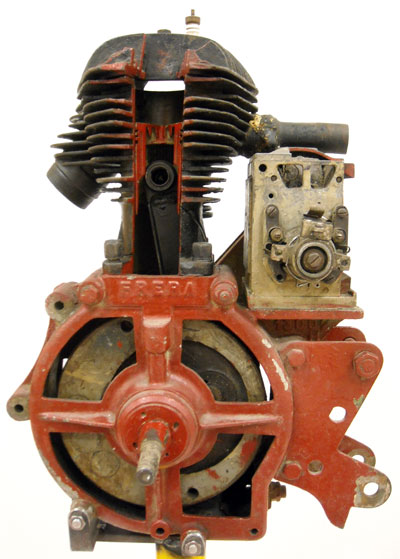

Frera 250 VL
1926 - 1932



65

Description

The Società Anonima Frera, founded in Varese (Italy) in 1904, was an important Italian motorcylce manufacturer. After the First World War the company enlarged the production range and took part in sports competitions obtaining various seccesses. Between 1926 and 1932 it developed new models including the Sport K3 motorcycle equipped with the 250 cm³ air-cooled single-cilinder engine. Nevertheless, due to the consequences of the economic crisis in the early 1930s the company went out of business in 1936.


Technical specifications

ManufacturerSocietà Anonima Frera, Tradate, Italy, from 1926 to 1932
Type250 cc
Descriptionsingle-cylinder engine, aluminium alloy crankcase, cylinder block and head made of cast iron
Stroke88 mm
Bore60 mm
Displacement249 cm³
Power9 hp at 4600 rpm
Valvetrain system2 side valves, controlled by a two cams housed in the crankcase, driven by a pair of gears
Fuel feeding systemwith a single barrel gasoline carburetor
Ignition systemwith a spark plug fed by a Magneti Marelli high-voltage magneto distributor
Cooling systemair-fed
Lubrication systemtotal-loss oiling enforced by a manual piston pump with flow regulator


Application

Frera Sport 250 K.3



Kind donation of Mr. Girolamo Di Giovanni.
