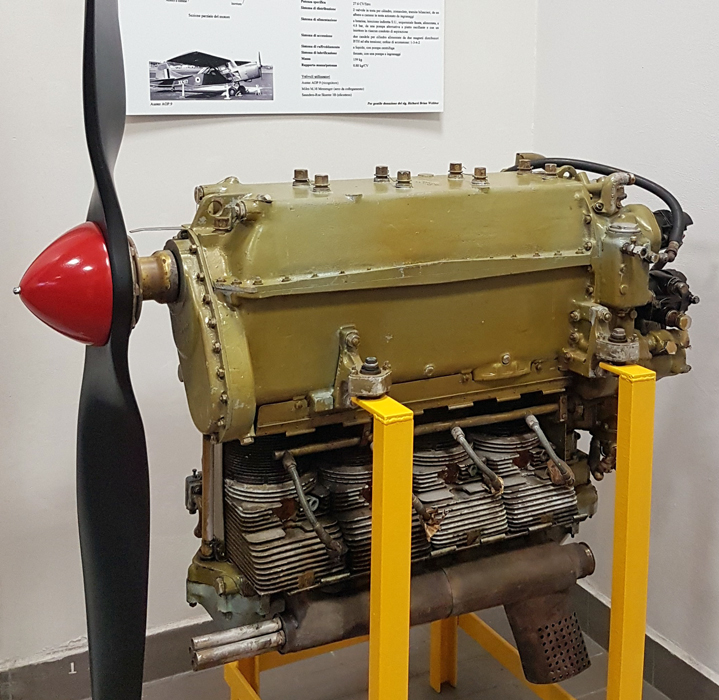

Blackburn Cirrus Bombardier
Anni '50



100

Description

The Bombardier engine was designed by the Cirrus Engine, a division of the British company Blackburn, starting from the end of the Second World War. The engine was produced in 300 units until the mid-1950s, mainly to equip the reconnaissance aeroplanes Auster AOP.9. The Cirrus Bombardier was one of the first British engines homologated for mass production to be equipped with a port-injection system, made by Skinner Union (SU). This allowed an increase in engine efficiency (lower specific consumption and about +25 hp) than the Cirrus Major III model with the same displacement. Despite it was designed for small airplanes, the engine has fine features, with a large use of light alloys, including the Elektron (a Magnesium alloy) for the crankcase and other structural parts.

Click here to listen to the audioguide on izi.TRAVEL


Technical specifications

ManufacturerCirrus Engine, a divison of the Blackburn and General Aircraft Ltd, Brough, Yorkshire (UK), 1950s
TypeCirrus Bombardier
Descriptionaircraft engine with inverted 4-inline cylinders, Elektron-made crankcase with 5 main bearings, steel-made cylinders, headd and pistons in aluminium alloy
Stroke140 mm
Bore122 mm
Displacement6524 cm³
Compression ratio7.0
Power180 hp at 2600 rpm (max. output at sea level)
Specific fuel consumption220 g/hp/h
Specific power27.6 CV/litre
Valvetrain system2 overhead valves per cylinder controlled by an overhead gear-driven camshaft
Fuel feeding systemport-injection fed at 4.8 bar by a S.U. gasoline reciprocating pump
Ignition systemwith two spark plugs per cylinder fed by two BTH magneto distributors
Cooling systemair-fed
Lubrication systemforced by feeding and scavenge gear pumps
Length1151 mm
Width483 mm
Height786 mm
Weight159 kg
Mass-to-power ratio0.88 kg/hp


Application

Auster AOP.9

Saunders-Roe Skeeter 3B

Miles M.38 Messenger



Kind donation of Mr. Richard Webber with the kind support of Mr. Richard Horner.
