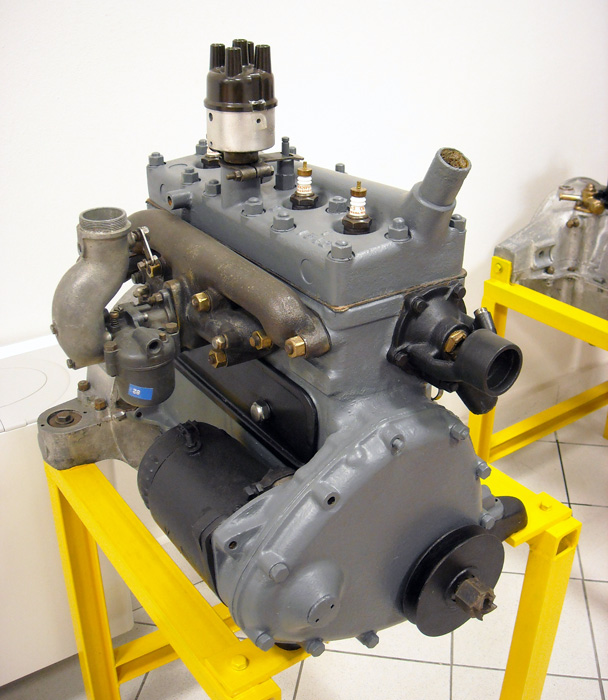

Motore FIAT tipo 114
1929 - 1932



The 114 is an automotive engine manufactured by FIAT for the automobile 514.

Technical specifications

ManufacturerFIAT, Turin, Italy, from 1929 to 1932
Descriptioninline 4-cylinder engine, cylinder block and head made of cast iron, with 3 main bearings
Stroke102 mm
Bore67 mm
Displacement1438 cm³
Compression ratio5.85
Power28 hp at 3400 rpm
Specific power19.5 hp/litre
Valvetrain system2 side valves per cylinder, controlled by a camshaft housed in the crankcase, driven by a Morse chain
Fuel feeding systemwith a single barrel gasoline carburetor Solex 26 FHD
Ignition systemwith a spark plug per cylinder fed by an inductive discharge system with a high-voltage distributor
Cooling systemliquid-fed by a centrifugal pump
Lubrication systemforced by a gear pump


FIAT 514 and FIAT 515

Testi e immagini di Giuseppe Genchi
