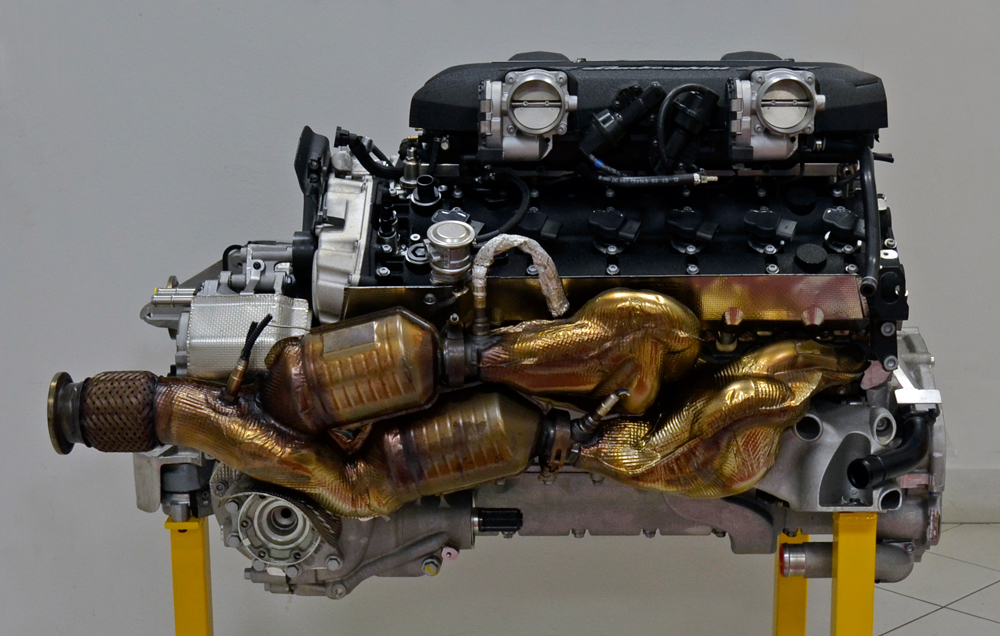

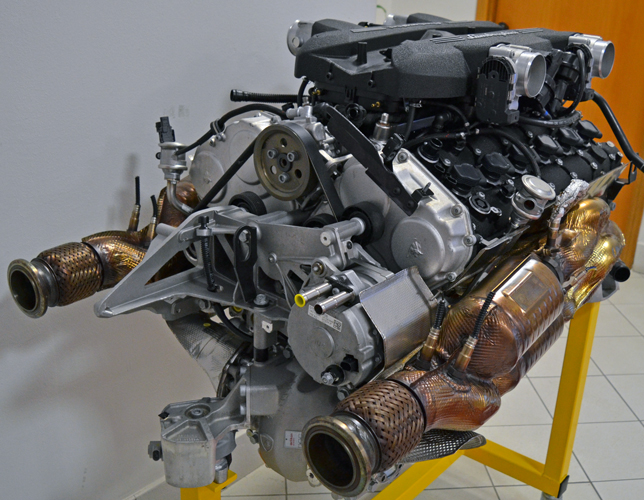

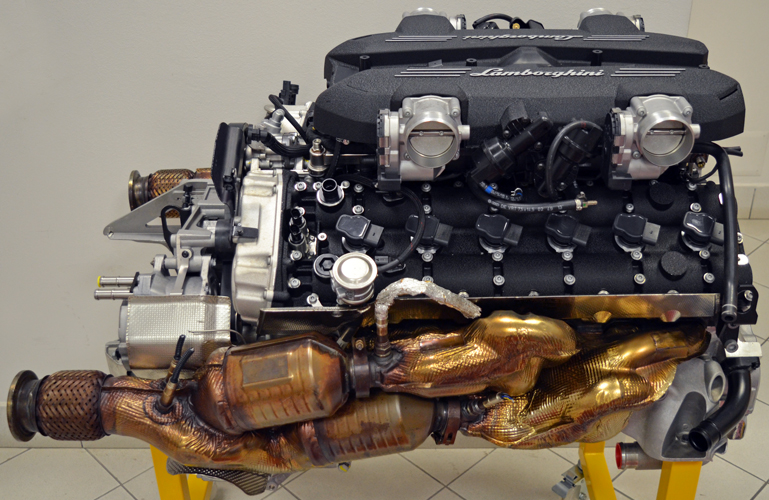

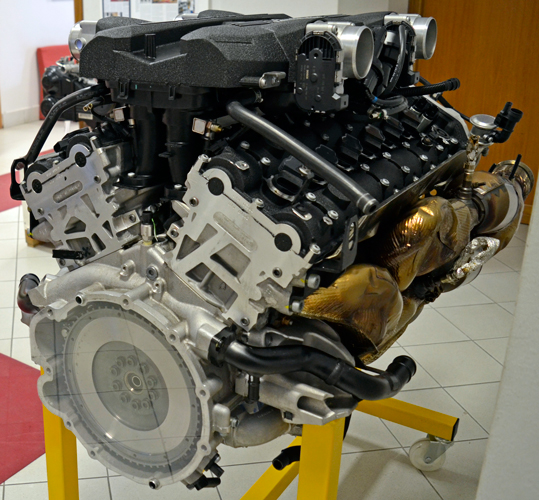

Motore Lamborghini L539 - Aventador
2010 - 2016



97

Description

The L539 is a high-performance naturally aspirated 6.5-litre 12-cylinder engine, manufactured by Lamborghini Automobili for its sport car Aventador. At its debut in 2010, the engine represented the top level production of Lamborghini as well as one of the most powerful engine for commercial sport car, thanks to its maximum power output of 700 hp at 8250 rpm, with a power-to-weight ratio of 2.98 hp/kg. It has been developed from the L537 engine, introducing several technical improvements such as a new combustion chamber design and a new electronic control system. The sport car Aventador, with the L539 engine, can reach 0-100 km/h in 2.9 seconds and 0-200 km/h in 8.6 seconds. The engine displayed at the Museum has been manufactured in 2015, and then it has been donated by Lamborghini Automobili in 2018.


Technical specifications

ManufacturerAutomobili Lamborghini S.p.A., Sant’Agata Bolognese, Italy, from 2010 to 2016 (the engine of the Museum has been manufactured in 2015)
TypeL539
Description12-cylinder engine, V 60° open-deck cylinder block, heads and pistons made of aluminium alloy
Stroke76.4 mm
Bore95.0 mm
Displacement6498 cm3
Compression ratio11.8
Power700 CV at 8250 rpm (max. speed 8500 rpm)
Torque690 Nm at 5500 rpm
Mean piston speed21 m/s a 8250 giri/minuto
Specific power107.7 hp/litre
Electronic control systemcomposed of two control units (master-slave) for the management of the entire powertrain system, developed by Lamborghini with EFI Technology (Bologna)
Valvetrain system4 valves per cylinder operated double overhead camshafts in each bank with inlet and exhaust variable valve timing system
Fuel feeding systemport fuel (gasoline) injection, with variable geometry inlet ducts
Ignition systemwith a spark plug and a dedicated ignition coil in each cylinder; the spark plug are also used for ion-sensing knock and misfire detection
Cooling systemliquid-fed by a centrifugal pump
Lubrication systemdry-sump type, composed of 8 pumps, with 2 cooler
Weight235 kg
Power-to-weight ratio2.98 hp/kg


Application

Lamborghini Aventador LP 700-4



Kind donation of Automobili Lamborghini S.p.A.
